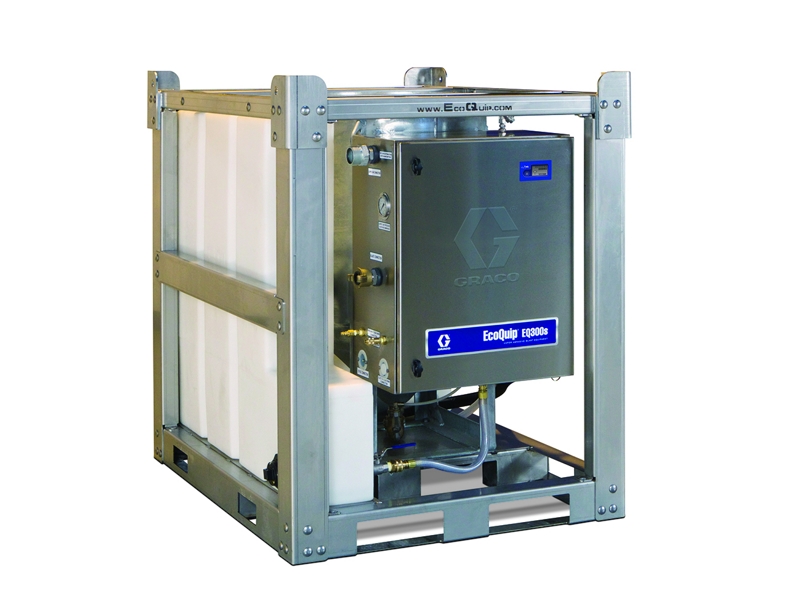

Graco EcoQuip 2 Vapour Blast System

Description
The EcoQuip 2 is a standalone, abrasive blast system offering maximum blasting power with minimal dust.It is ideal for concrete repair, coating removal, steel surface preparation and graffiti removal. The system can be easily switched between applications and can utilise any media heavier than water.
Features

ATEX approved

50 % faster media reload from empty

Use with Graco ATEX rated, conductive hoses with a maximum of 150ft (45m) combined hose length

Commonly utilised media includes garnet, crushed glass and glass bead

Easy maintenance

Requires the use of appropriate Personal Protective Equipment (PPE) or Respiratory Protective Equipment (RPE)

Manufacturer’s instructions ensure safe use and optimum performance

Available for sale or hire

S10-EQ300

Height(mm) 1150

Width(mm) 1420

Diameter(mm) 1410

Air Capacity(cfm) 185-375

Blast Pressure(psi) 30-120(2-8.3bar)

Noise Level(dba) 133

Weight(kg) 499

Mobile Skid Trailer

Model EcoQuip 2 EQm EcoQuip 2 EQs EcoQuip 2 EQs Elite EcoQuip 2 EQ00t elite(T4i) EcoQuip 2 EQ400t elite(T3) EcoQuip 2 EQ400t elite(T4i)
Info Compact,fully portable entery level unit.Avalible in Pneumatic,Electrical and ATEX High production,entery level skid unit.Avalible in Pneumatic,Electrical and ATEX High production,fully loaded system.Avalible in Pneumatic,Electrical and ATEX Twice the production rate.Avalible in Pneumatic,Electrical and ATEX Mid-rier towable abrasive blasting trailer complete with intergrated blast system and diesel compressor.Avalible in Pneumatic,Electrical. Largest towable abrasive blasting trailer complete with intergrated blast system and diesel compressor.Avalible in Pneumatic,Electrical.

Pot Capacity 99.1L 184L 184L 184L 184L 184L 184L

Water Tank Polythylene(Accessory only) Polyethylene None Aluminium built into trailer Aluminium built into trailer Aluminium built into trailer Aluminium built into trailer

Blast Circuit 25.4mm 38.1mm 38.1mm 38.1mm 38.1mm 38.1mm 38.1mm

Max.Compressed Air 500cfm 900cfm 900cfm 900cfm 210cfm 375cfm 425cfm

Max. Blast Pressure 175psi 175psi 175psi 175psi 125psi 125psi 175psi

Nozzle #7 #8 #8 High performance (2x)#8 High performance #7 High performance #8 High performance #8High performance

Blast Hose Yes Yes Yes Yes Yes Yes Yes

	S10-EQ300
Height(mm)	1150
Width(mm)	1420
Diameter(mm)	1410
Air Capacity(cfm)	185-375
Blast Pressure(psi)	30-120(2-8.3bar)
Noise Level(dba)	133
Weight(kg)	499

	Mobile	Skid	Trailer
Model	EcoQuip 2 EQm	EcoQuip 2 EQs	EcoQuip 2 EQs Elite	EcoQuip 2 EQ00t elite(T4i)	EcoQuip 2 EQ400t elite(T3)	EcoQuip 2 EQ400t elite(T4i)
Info	Compact,fully portable entery level unit.Avalible in Pneumatic,Electrical and ATEX	High production,entery level skid unit.Avalible in Pneumatic,Electrical and ATEX	High production,fully loaded system.Avalible in Pneumatic,Electrical and ATEX	Twice the production rate.Avalible in Pneumatic,Electrical and ATEX	Mid-rier towable abrasive blasting trailer complete with intergrated blast system and diesel compressor.Avalible in Pneumatic,Electrical.	Largest towable abrasive blasting trailer complete with intergrated blast system and diesel compressor.Avalible in Pneumatic,Electrical.
Pot Capacity	99.1L	184L	184L	184L	184L	184L	184L
Water Tank	Polythylene(Accessory only)	Polyethylene	None	Aluminium built into trailer	Aluminium built into trailer	Aluminium built into trailer	Aluminium built into trailer
Blast Circuit	25.4mm	38.1mm	38.1mm	38.1mm	38.1mm	38.1mm	38.1mm
Max.Compressed Air	500cfm	900cfm	900cfm	900cfm	210cfm	375cfm	425cfm
Max. Blast Pressure	175psi	175psi	175psi	175psi	125psi	125psi	175psi
Nozzle	#7	#8	#8 High performance	(2x)#8 High performance	#7 High performance	#8 High performance	#8High performance
Blast Hose	Yes	Yes	Yes	Yes	Yes	Yes	Yes
