Bristle Blaster

Products Mechanical Preperation Tools Bristle Blaster

Bristle Blaster

Features

  • ATEX approved for the use in Zone 1, potentially explosive atmospheres (for Bristle Blaster® Pneumatic)
  • The pneumatic and electric blasters comply with EN ISO 8662-1, 8662-4 for vibration levels and DIN 45635-21, ISO 3744 for sound pressure level
  • Visual finish is comparable to that achieved by grit blasting
  • Roughness capability from 40-120 μm Rz (1.6-4.7 mils)
  • Hand held power tool, easy to operate and to transport (weight of Bristle Blaster® Pneumatic approx. 1.2kg / 2.6 lbs)
  • No complex equipment, machinery or work preparation, only compressed air or electric power supply required
  • Grit free process, no additional waste production
  • No need for housing installations, no reprocessing or disposal of grit media needed
  • Ideal for spot-repair and touch-up jobs
  • Easy maintenance
  • Requires the use of appropriate Personal Protective Equipment (PPE) or Respiratory Protective Equipment (RPE) (please see pages XX for more details
  • Manufacturer’s instructions ensure safe use and optimum performance
  • Available for sale or hire

S90-MBX-61A Specifications
S90-MBX-61A
Weight (kg)1.2
Air Pressure Connection Thread (inches)1⁄4
Required Hose Inside Diameter (mm)3/8 (9.5mm)
Rotational Speed (rpm)3500
Required Flow Pressure (psi)90 (6.2 bar)
Average Air Consumption (cfm)17.5
Vibration (m/sec2)2
Sound Pressure Level (dB)83
Carbon Spring SteelStainless Steel
1 Air Pressure Regulator for 23mm Belts1 Air Pressure Regulator for 23mm Belts
1 Air Pressure Regulator for 11mm Belts1 Air Pressure Regulator for 11mm Belts
5 Bristle Blaster® Belts, red, 23mm5 Bristle Blaster® Belts, red, 23mm, stainless steel
5 Bristle Blaster® Belts, red, 11mm5 Bristle Blaster® Belts, red, 11mm, stainless steel

S90-MBX-62A Specifications
S90-MBX-62A
Weight (kg)2.3
Output (W)550
Voltage (120V)120 (+/-10%)
Rotational Speed (rpm)3200
Vibration (m/sec2)2.8
Sound Pressure Level (dB)82
Carbon Spring SteelStainless Steel
1 drive unit Bristle Blaster® Industrial Electric 230V resp. 120V1 drive unit Bristle Blaster® Industrial Electric 230V resp. 120V
1 Air Pressure Regulator for 11mm Belts10 Bristle Blaster® Belts, red, 23mm
10 Bristle Blaster® Belts, red, 23mm5 Bristle Blaster® Belts, red, 23mm, stainless steel
Packed in a blow mould case Packed in a blow mould case
Please specify carbon spring steel or stainless steel when ordering.

Product Code Description Add to Quote
S90-MBX-61A Monti Bristle Blasters-Air
CONTACT

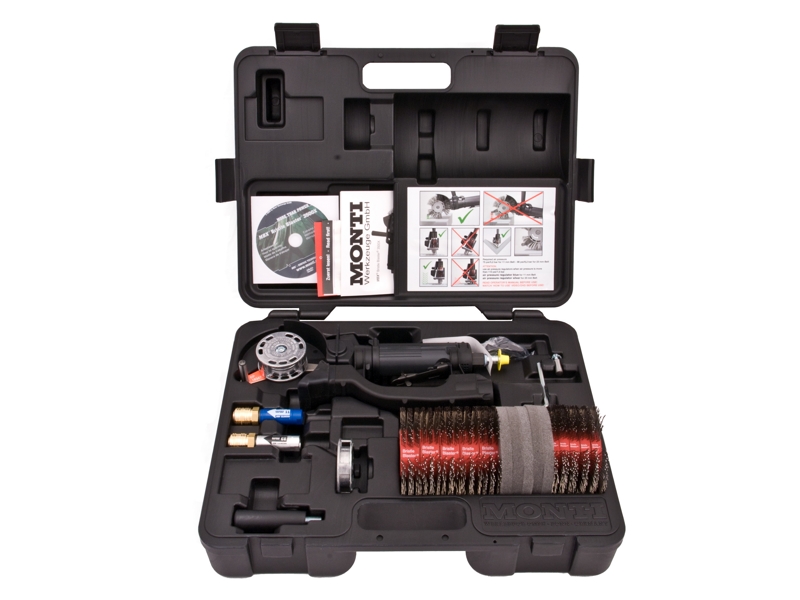

S90-MBX-62A Monti Bristle Blaster Industrial Set-Electric (120V)
CONTACT
